Garmin | GPSMAP® 1623xsv

Name: Garmin | GPSMAP® 1623xsv
Brand: Garmin UK
SKU: 010-02919-02
Price: 3999.99 EUR
Availability: InStock

Product Description

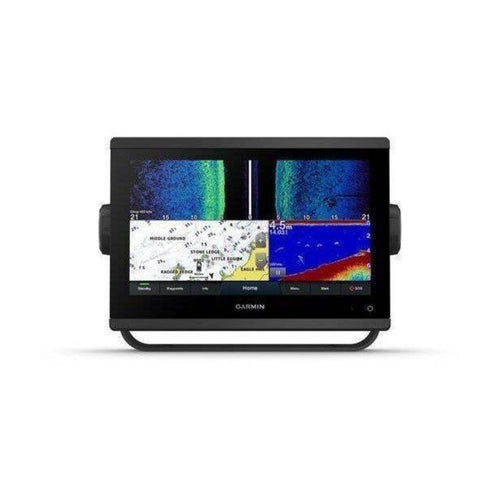

GPSMAP® 1623xsv

SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap

Dimension	38.4 x 26.2 x 7.6 cm (15.1″ x 10.3″ x 3.0″)
Weight	4.4 kg
Water rating	IPX7
Touchscreen	Yes
Display Type	FHD, IPS
Display Size	34.5 cm x 19.5 cm; 39.7 cm diagonal (13.6″ x 7.7″; 15.6″ diagonal)
Display Resolution	1920 x 1080 pixels
Mounting Options	Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount or bail-mount installation. Professional tools and knowledge is required.)
Input	Touchscreen

Built-in maps
Tide tables	Yes

Chartplotter features
Garmin SmartMode compatible (customisable monitor presets)	Yes
AIS	Yes
DSC	Yes
Supports Fusion-Link™ compatible radios	Yes
GSD Black Box Sonar Support	Yes
GCV Black Box Sonar Support	Yes
ActiveCaptain Mobile Planning Compatible	yes
GRID (Garmin Remote Input Device) compatible	Yes
Wireless Remote Compatible	Yes
Sailing features	Yes
Spoken audio alerts	Yes
OneHelm support	Yes

Sonar features & specifications
Displays sonar	Yes
Power output	1 kW
Traditional sonar (dual frequency/beam)	Built-in (single channel CHIRP, 50/70/83/200 kHz, L, M, H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar	Yes
LiveScope	Yes

Connections
NMEA 2000® ports	1
NMEA 0183 Input (Rx) Ports	1
NMEA 0183 output (Tx) ports	1
Video input ports	1 (BNC composite)
Video output ports	1 HDMI
J1939 ports	1
Garmin Marine Network Ports	2
12-pin transducer ports	1
USB ports	Yes
Bluetooth^® calling	Yes
ANT+ (Connectivity)	Yes
Garmin Wi-Fi network (local connection)	Yes
