Tier One | QD Monomount - Long Saddle | 30mm Medium 0 Mil

Tier-One QD Monomounts are precision made on 5 axis CNC machinery using innovative engineering processes.

The key to accuracy in manufacture is to minimise the number of operations required to complete the machining process.

By investing in new technology, we have been able to cut the number of operations required from eight to two. By doing this, there is no accuracy loss due to re-setting for different operations.

Available in Medium and High configurations.

The Tier One QD Monomount is a true one-piece mount machined from a single, solid billet of 7075T6 aluminium alloy.

All critical faces are machined in one operation which ensures the highest possible tolerances, and the greatest accuracy downrange for you.

Every part of this precision instrument is painstakingly machined and finished by us, even down to the stainless steel screws which we manufacture on our own machines.

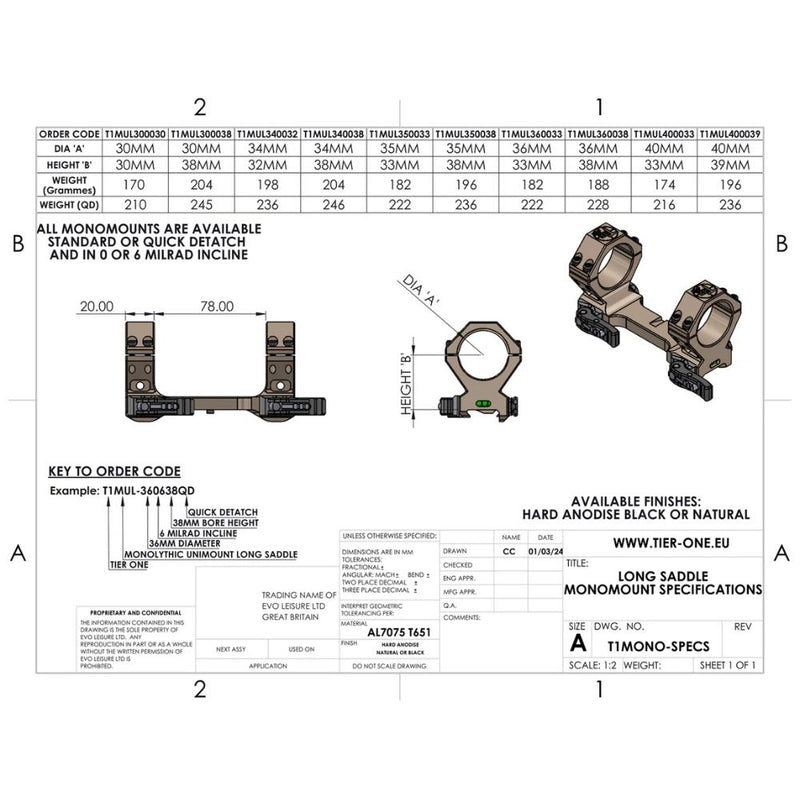

Specifications;
Manufactured from High Grade 7075T6 Aluminium
Large scope clamping area to withstand heavy recoil
Two different body lengths to enable fitments of all quality optics
Available in 30mm-34mm-35mm-36mm and 40mm tube sizes
Mil-Spec 30 micron hard anodised finish
Built in Anti-Cant bubble
Mirage Band compatible
Bolt on accessory rails available for ring caps and saddle
One Hit machining to ensure repeatability
Supplied with Levelling Wedge to enable true bore to reticle alignment when setting optic

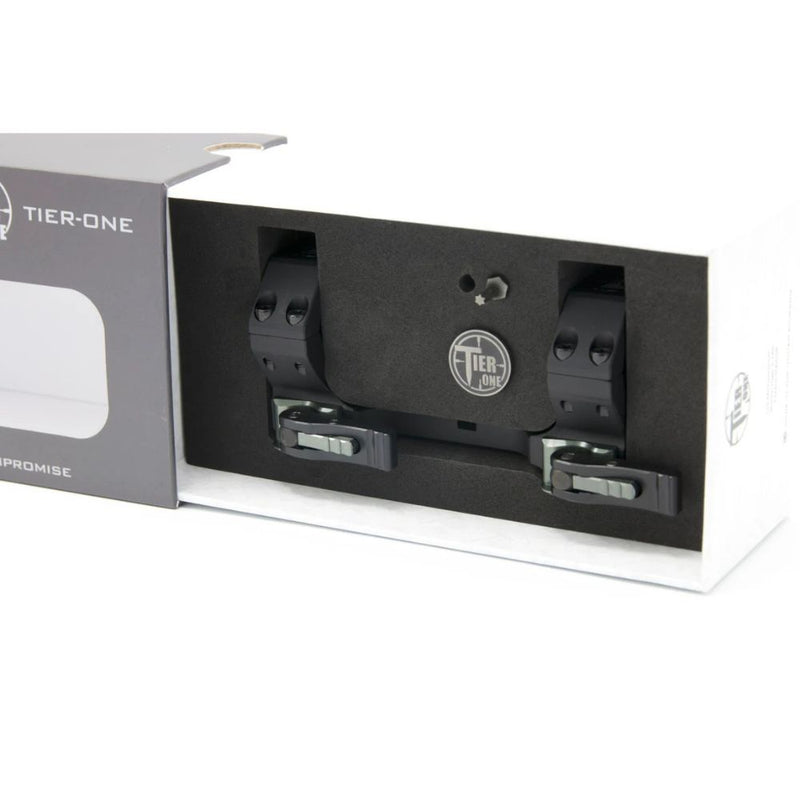

Supplied in Hard Plastic Case complete with necessary Torx bits
