How to Set Up a Fish Finder on a Kayak (2026 Guide)
Get the transducer mount right and the transducer angle set, and the rest of the fish finder setup on a kayak or small boat takes under an hour.
- Mount the transducer parallel to the hull with the arrow facing down for a clean signal in 2026.
- The Garmin Striker Vivid 9SV reads bottom structure and marks fish to depths well past 300m in fresh water.
- A dedicated 12V or 24V battery beats sharing power with a trolling motor — less interference, longer runtime.
- Set sensitivity to 75-80% and drop boat speed under 5km/h before you trust what the screen shows you.
Why this matters
A fish finder that's wired wrong or mounted at the wrong angle gives you noise, not fish. On Irish lakes and estuaries where structure changes fast — drop-offs on Lough Corrib, gravel bars on the Shannon, sandbanks off the coast — a clean signal is the difference between marking a shoal of perch and staring at static.
Most setup problems come down to three things: transducer angle, power quality, and where you mounted the display. Fix those three and everything else on the unit is just menu settings. There's more detail on unit choice in the guide on fish finders for kayak and boat anglers, but this walkthrough covers the physical install.
What you'll need
- Fish finder or chartplotter/fish finder combo unit
- Transducer (often bundled with the unit)
- Transducer mounting arm or transom bracket
- Marine sealant or silicone for through-hull cable runs
- A dedicated 12V or 24V battery — never share power with a bilge pump or livewell circuit
- Inline fuse holder and the correct fuse rating for your unit
- Cable ties, self-amalgamating tape, and a small tub of dielectric grease
- Basic hand tools: drill, hex keys, wire strippers, crimpers
- 30-45 minutes on dry land, plus a short test run on the water
The steps
1. Pick the transducer mount location
This single decision fixes or ruins the whole setup. On a kayak, the transducer usually goes on a scupper mount or a transom bracket at the rear; on a small boat, it sits on the transom or through a hull skimmer.
Avoid mounting near the propeller, trolling motor, or any turbulence point — bubbles under the transducer face read as false bottom on the screen. Keep it away from hull seams and rivets too.
Common mistake: mounting too close to the hull's centreline where wake turbulence builds at speed above 8-10km/h.
2. Mount the transducer level
The transducer face needs to sit parallel to the water, not tilted. A tilt of even 5-10 degrees skews the cone angle and you'll lose bottom lock the moment you pick up speed.
Run the arrow or notch on the transducer housing facing forward, exactly as the manual shows. Seal any drilled holes with marine sealant before you launch — a small leak here sinks confidence in the whole rig fast.
Expected outcome: a solid, unbroken bottom line on the display within seconds of powering on, even at idle.
3. Run the transducer cable
Route the cable away from any other electrical wiring, especially trolling motor cables — electrical noise from a motor bleeds straight into a fish finder signal and shows up as scattered marks on screen.
Leave a small drip loop before the cable enters the boat so water runs off instead of tracking into the connector. Secure every 20-30cm with a cable tie so nothing chafes against the hull.

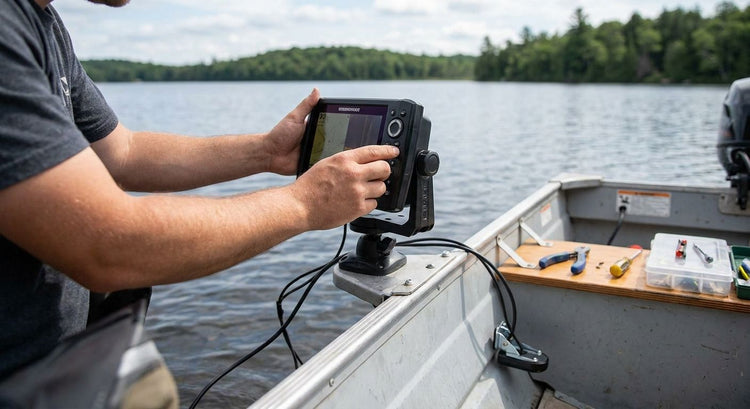

4. Mount the display unit
Position the screen where you can read it without leaning, and where it won't take a direct wave over the bow. A RAM mount or built-in console cutout both work; angle the screen slightly downward to cut glare on bright days, which is most days once the 2026 season gets going in Ireland.
A 9-inch screen like the one on the Garmin Striker Vivid 9SV shows split-screen sonar and chart data without squinting; a smaller 5-7 inch unit is fine for a single sonar view on a kayak.
Common mistake: mounting the display where the kayak paddle or rod butt knocks it on every cast.
5. Wire in a dedicated battery
Don't tap the fish finder into the same circuit as a trolling motor or bilge pump. Voltage drop under load causes the screen to flicker or reboot mid-session, usually right as you're marking fish.
A sealed 12V or 24V lithium battery, wired through its own inline fuse, keeps the unit stable for a full day on the water. A 24V 100Ah lithium battery gives enough headroom to run a fish finder and a trolling motor from the same bank without either one starving the other.
6. Power on and run the initial calibration
First power-up triggers a software setup wizard on most units — set the water type (fresh or salt), transducer type, and units of measurement (metres, since that's the Irish convention). Let the unit sit for 30-60 seconds to lock GPS before moving.
Expected outcome: a GPS fix, a stable depth reading, and a bottom line that doesn't jump around at idle.
7. Set sensitivity and range for the water you're on
Start sensitivity around 75-80% for still water like a lake, and drop it slightly for fast-moving river water where silt scatter adds noise. Set range to roughly 1.5x the deepest water you expect to fish that day — too wide a range compresses the screen and hides small fish arches.
8. Test on the water and fine-tune
Run at idle first, then bring speed up gradually while watching the bottom line. If it breaks up above 5km/h, the transducer angle or mount position needs adjusting before you trust the unit at trolling speed.
Common mistake: judging the whole setup off a five-minute test at the pier instead of a proper run at trolling speed.
Troubleshooting
- No signal at all — check the transducer cable connector for corrosion or a loose pin; dielectric grease on the pins prevents this in future.
- Broken or jumpy bottom line — the transducer isn't level, or it's mounted in a turbulence zone; re-angle it and retest at idle.
- Screen resets or flickers under load — you're sharing a circuit with a motor or pump; wire the fish finder to its own dedicated battery.
- Interference lines (static bands) across the screen — trolling motor or another electronic device is too close to the transducer cable; reroute the cable at least 20cm away.
- GPS won't lock — give the unit a clear view of open sky for 60-90 seconds before moving; a rooftop or bridge nearby delays the first fix.
- Weak fish marks at speed — sensitivity is set too low for the water type; bump it 5-10% at a time until arches show clearly without excess clutter.
Tools and resources
- Fish finder / chartplotter combo unit — the Garmin ECHOMAP Ultra 2 10-inch chartplotter pairs sonar with mapping in one screen for a small boat setup.
- Standalone sonar unit — the Garmin Striker Vivid 9SV is a solid dedicated fish finder for kayak or boat use without the chartplotter overhead.
- Dedicated power — a 24V 100Ah lithium battery runs a fish finder and trolling motor through a full day without voltage sag.
- For anglers chasing forward-facing sonar, Humminbird Mega Live and Garmin Livescope transducers show real-time fish position ahead of the boat rather than just what's passed underneath — worth it once the basic setup above is dialled in.
- Marine sealant, cable ties, dielectric grease, inline fuse holders — small parts, but the ones that stop a 2026 setup turning into a corroded mess by mid-season.
What to do next
Once the fish finder is mounted and reading clean, the next call is matching the boat or kayak itself to how you fish — hull shape and stability affect how steady that transducer signal stays at trolling speed. If you're still choosing the platform rather than the electronics, sort that first; the transducer mount decisions above only work once the hull is settled.
FAQ
What's the best fish finder for a kayak in Ireland?
For most kayak anglers in 2026, a compact unit like the Garmin Striker Vivid 9SV covers lakes, rivers and inshore work without needing a full chartplotter. Anyone navigating open coastal water benefits more from a combo unit like the Garmin ECHOMAP Ultra 2 10SV that adds charts alongside sonar.
How do I mount a transducer on a kayak?
Mount it on a scupper hole or transom bracket at the rear, level with the waterline and clear of turbulence. The transducer face must sit parallel to the water — even a 5-10 degree tilt breaks the bottom signal at speed.
Do I need a separate battery for my fish finder?
Yes, a dedicated battery avoids voltage drop and interference from motors or pumps sharing the same circuit. A sealed lithium battery wired through its own inline fuse keeps the screen stable for a full day on the water.
What's the difference between a fish finder and a chartplotter?
A fish finder reads sonar data — depth, structure, fish arches — while a chartplotter overlays that onto navigation charts and GPS. Combo units like the Garmin ECHOMAP Ultra 2 10SV do both from one screen.
How much does a fish finder for a small boat cost in 2026?
Entry-level standalone units sit at the lower end of the market, while combo chartplotter/sonar units with larger screens and forward-facing sonar sit higher. Check current pricing on individual units since ranges shift through the 2026 season.
Can I use a fish finder in fresh and salt water?
Most modern units support both, but you need to select the correct water type in the setup menu since salt and fresh water affect sonar return differently. Skipping this step is a common reason readings look off after switching between a lake and the coast.
What sensitivity setting should I use on a fish finder?
Start around 75-80% on still water and drop it slightly on fast rivers where silt adds noise to the screen. Adjust in small 5-10% steps until fish arches show clearly without excess clutter.
How do I stop my fish finder from losing GPS lock?
Give the unit 60-90 seconds with a clear view of open sky before moving off, and keep the antenna away from anything metal that blocks signal. Units mounted under a canopy or near a bridge take longer to get a first fix.
One last thing
Most setup complaints that look like a faulty unit are actually a bad transducer angle — re-level it before you assume the electronics are broken. A five-minute check at the pier saves a wasted day on the water in 2026.
