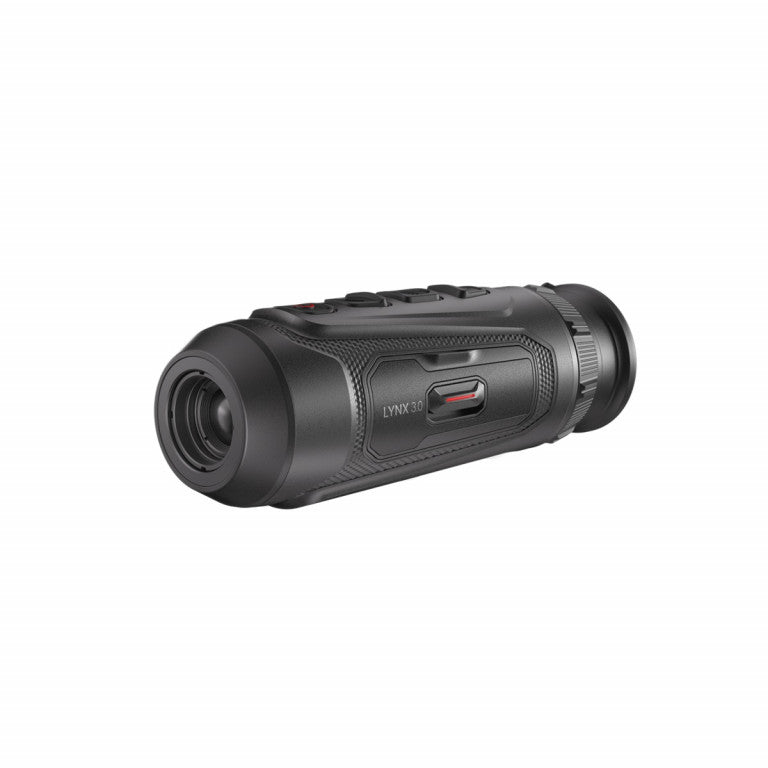

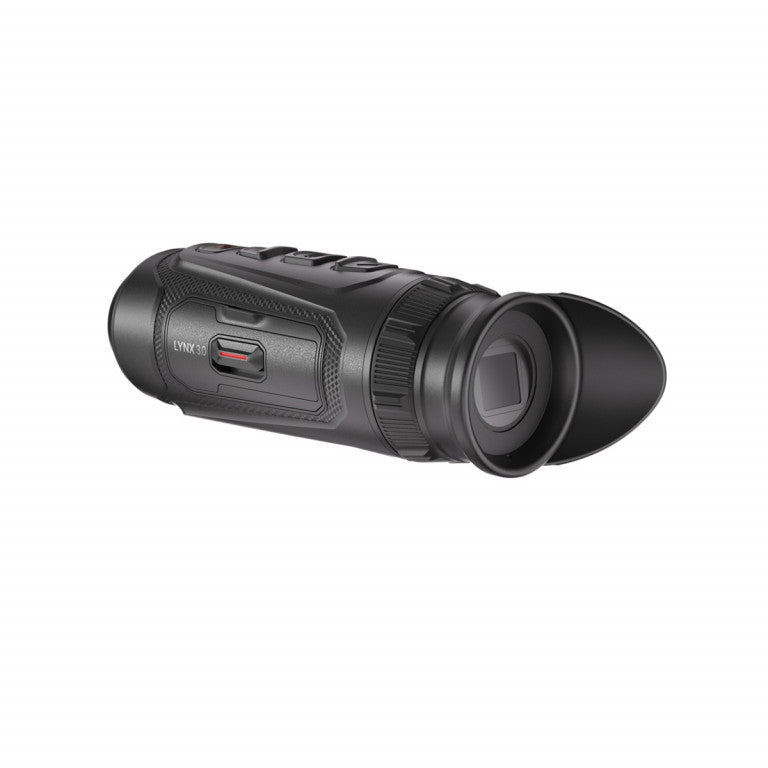

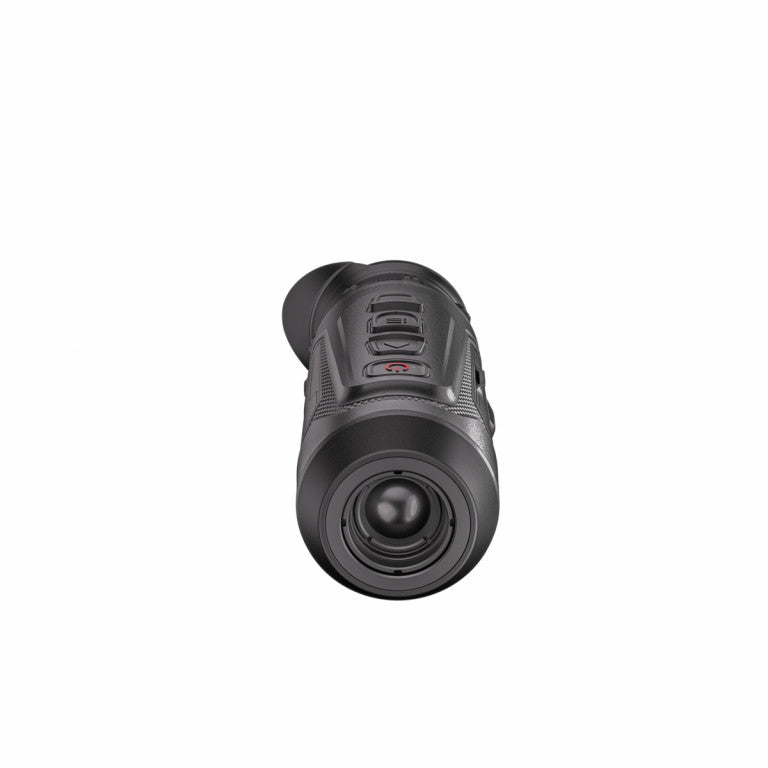

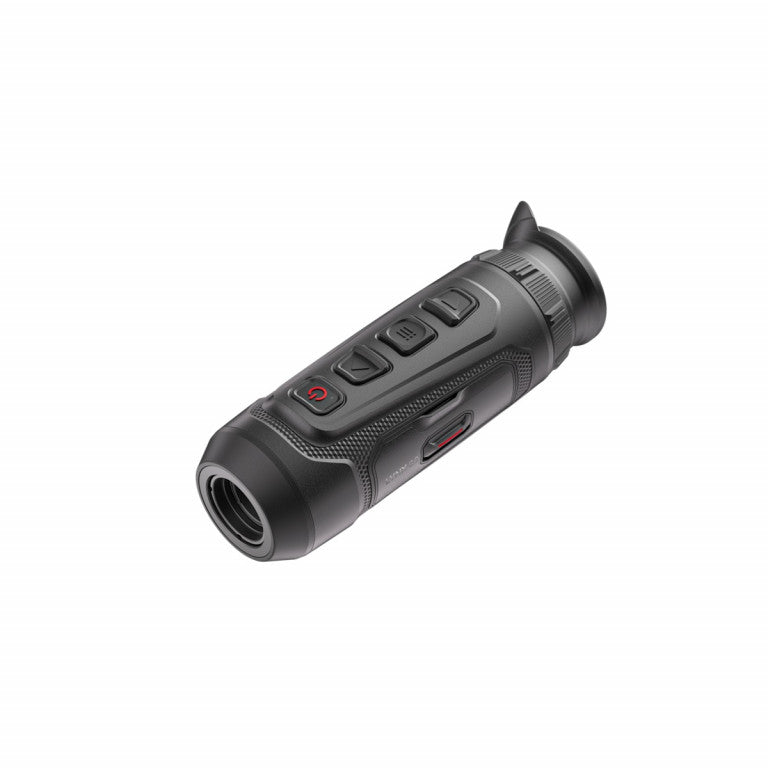

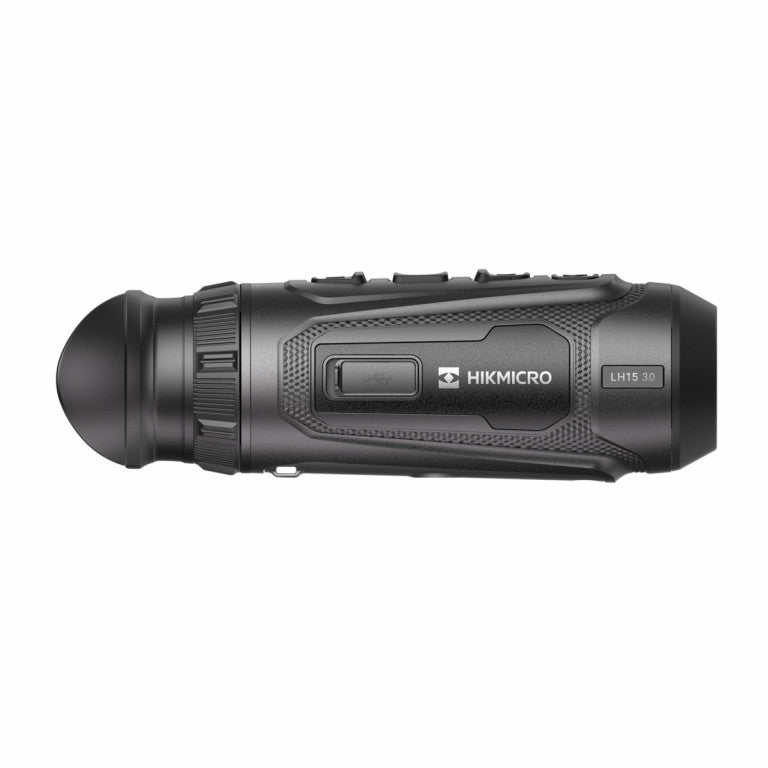

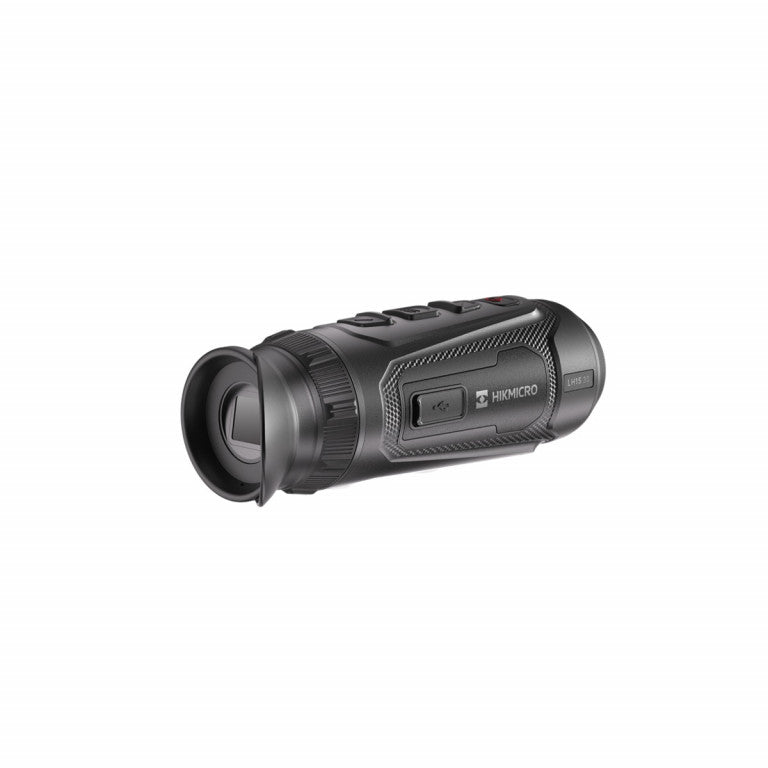

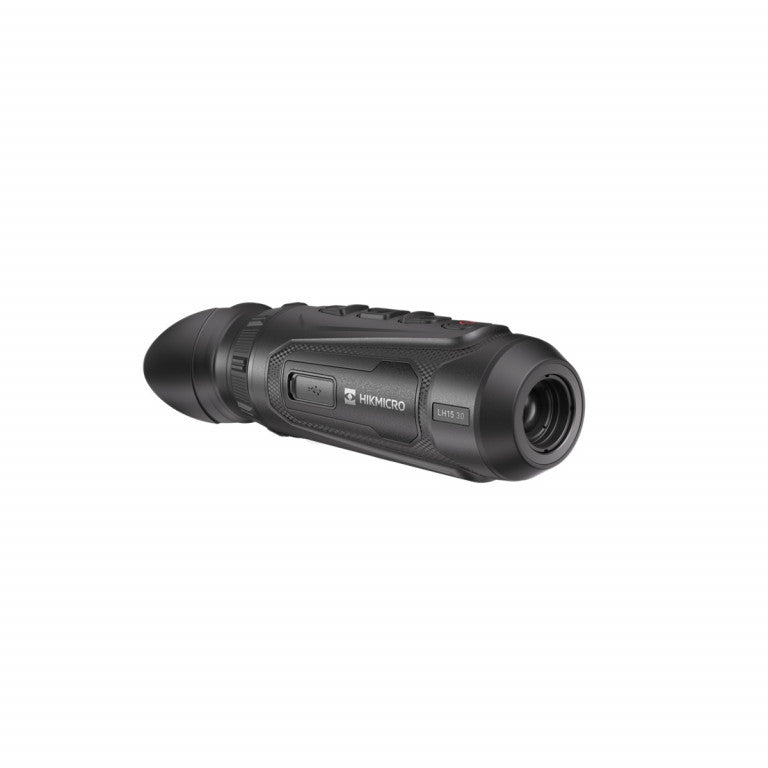

HIKMICRO | Lynx 3.0 15mm 320x240px | Thermal Monocular | LH15 | *Pre-Order

Available for pre-order. Stock due end of December.

The Lynx 3.0 , redefining entry-level thermal imagers.

The HIKMICRO Lynx 3.0 LH15 is a professional-grade thermal monocular engineered for reliability and image precision. Featuring a 320x240 thermal detector and a 15mm F1.0 lens, it offers 2.2x base magnification, an 11.7° field of view, and a detection range up to 750 metres, making it ideal for forested or mid-range applications.

Powered by AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LH15 delivers outstanding visual clarity and contrast across dynamic environments. Its HSIS shutterless imaging system ensures smooth, silent image refresh , critical for operations requiring discretion and consistency in performance.

Compact and resilient, the LH15 weighs 296.5 grams and includes a replaceable 18650 battery with up to 5 hours’ runtime at -20°C. Designed to perform under pressure, it offers dependable, high-definition thermal imaging wherever your mission takes you.

• Image SensorVOx Uncooled Focal Plane Arrays
• Max. Resolution320 × 240
• Frame Rate50 Hz
• Pixel Interval12 μm
• Response Waveband8 μm to 14 μm
• NETDLess than 18 mK (@25°C), F#=1.0
• Lens (Focal Length)15 mm, F1.0
• Focus ModeFocus Free
• Min. Focusing Distance7 m
• Magnification2.2 × - 17.6 × (8×)
• Field of View (H × V), Degrees / m @100 m11.7° × 8.8° / 20.5 m × 15.4 m
• Detection Range750 m
• Display1024 × 768, 0.39 inch, AMOLED
• Contrast AdjustmentYes
• Brightness AdjustmentYes
• PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil6 mm
• Eye Relief20 mm
• Diopter (Range)-5 D to +3 D
• Tone AdjustmentCold, Warm
• Zoom ProYes
• HSIS (HIKMICRO Shutterless Image System)Yes
• Image Pro 3.0Yes
• Sync ProYes
• Battery TypeReplaceable and rechargeable 18650 battery
• Work Temperature / HumidityFrom -30°C to 45°C (-22°F to 113°F); Humidity: 90% or Less
• Protection LevelIP67
• Weight296.5 g

• 256×192 thermal detector with NETD < 20 mK
• 15mm F1.0 lens with 750m detection range
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• HIKMICRO Shutterless Image System (HSIS)
• 0.39” 1024×768 AMOLED display
• Up to 5.5 hours’ operation at -20°C
• Lightweight, pocket-sized 296.5g design

• Main Unit: 3 Years

HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
