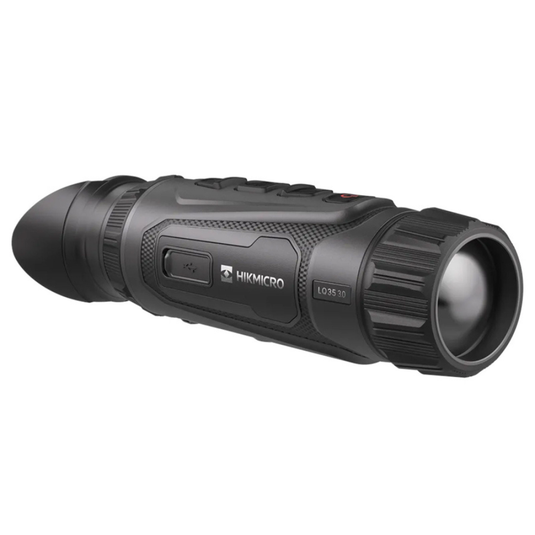

HIKMICRO | Lynx 3.0 35mm 640x512px | Thermal Monocular | LQ35

With a base magnification of 1.9x, a 640×512 detector and a 35 mm F1.0 lens, the Lynx Pro LQ35 3.0 offers unmatched performance for professional hunters and medium to long range applications. Its 7.5° field of view (13.1 m at 100 m) and a detection range of up to 1800 meters ensure an exceptional level of detail in wide open spaces, making it the ultimate choice for demanding users seeking premium quality with shutterless technology and no image refresh.

Features

• Thermal resolution up to 640 × 512
• High-sensitivity thermal module with NETD
• 35 mm F1.0 lens with a thermal detection range of up to 1800 m (6000 ft)
• Hikmicro Shutterless System without Image Refresh (HSIS)
• AI-based Image Pro 3.0 and Zoom Pro algorithms
• 0.49-inch OLED display with 1920 × 1080 resolution
• Replaceable and rechargeable 18650 battery providing up to 4.5 hours of continuous operation at -20 °C (-4°F)
• Lightweight 354.5 g design with compact pocket format
• 1,000 meter rangefinder

Thermal module

• Image sensor: Uncooled VOx focal plane arrays
• Resolution: 640 × 512
• Frame rate: 50 Hz
• Pixel spacing: 12 μm
• Waveband response: 8 μm to 14 μm
• NETD: Less than 15 mK (@25°C), F# = 1.0
• Lens (focal length): 35mm, f1.0
• Detection range: 1,800 m
• Min. focusing distance: 3.5 m (10 ft)
• Magnifications: 1.9x to 15.2x (8x)
• Field of view (H × V), Degrees / m @100m:12.5°×7.5°/21.9m×13.2m

Display Image

• Display: 1920 × 1080, 0.49 inch, AMOLED
• Palettes: Vivid Black, Vivid White, Vivid Red, Fusion, Monochrome Red, Monochrome Green
• Exit pupil: 6 mm
• Eye relief: 20 mm
• Diopter (range): -5 D to +3 D
• Brightness adjustment: Yes
• Tint Adjustment: Cool, Warm
• Contrast Adjustment
• Zoom Pro
• Standby Mode

System

• Storage: Built-in EMMC (64GB)
• PIP
• Hotspot: 2.4/5G WiFi Frequency Band
• Hot Track
• Distance measurement
• Audio and video capture

Power supply

• Battery type: Replaceable and rechargeable 18650 lithium ion battery
• Battery operating time: 5 hours continuous WiFi operation at 25°C (77°F)
• Power Supply Type-C: 5VDC, 2A. Support External Power Supply

General

• Protection level: IP67
• Rangefinder 1,000 meters distance
• Dimensions: 169.6 mm × 53.6 mm × 49.5 mm
• Weight: 354.5 g with battery
• Operating temperature: -30°C to +45°C (-30°F to +45°F)

Box Contents

• Thermal monocular Hikmicro Lynx Pro LQ35 3.0
• Battery charger
• 2 batteries
• Dust cloth
• Type C cable
• Quick Start Guide
