Railblaza | E Series DC Starport

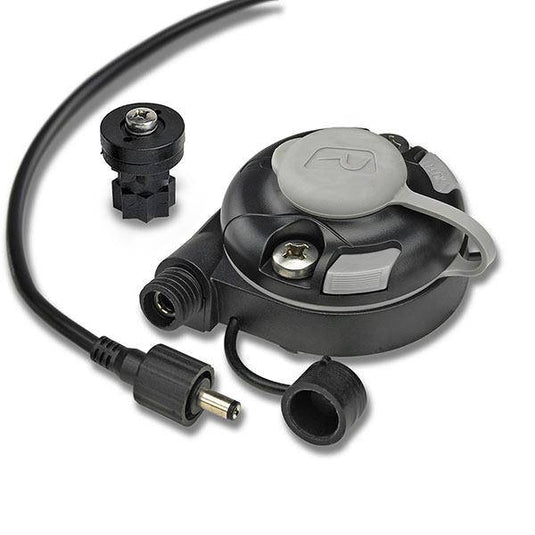

The E Series 12V StarPort combines a 12 volt DC 3 amp socket within our StarPort base allowing the connection of LED spotlights, cabin fans, depth sounders and many other devices.

You can easily plug your devices in for use, then transfer it to another location, remove and replace with another accessory, or pack them away. When not in use the water tight cap seals off the socket.

The E series DC Port can also be mounted on the RAILBLAZA range of RailMounts allowing easy mounting and removal for LED floodlights.

This E Series StarPort is IP56 rated.

MOUNTING INSTRUCTIONS:

Using base plate for a template as shown. Drill 2 x 6mm (1/4″) mounting holes for 6mm machine screws or 2 x 3.5mm (.125″) holes for self-tapping screws. Drill a 6mm (1/4″) hole for the cable entry.
Use a silicon sealant underneath the base plate to ensure sealing for the cable and fastenings if mounting in an exposed position.
Assemble parts as per diagram ensuring the DC socket is positioned so the cable retention fins in the base plate lock into the slots on the lead.
Star adaptor can be used for making lights etc StarPort compatible.
