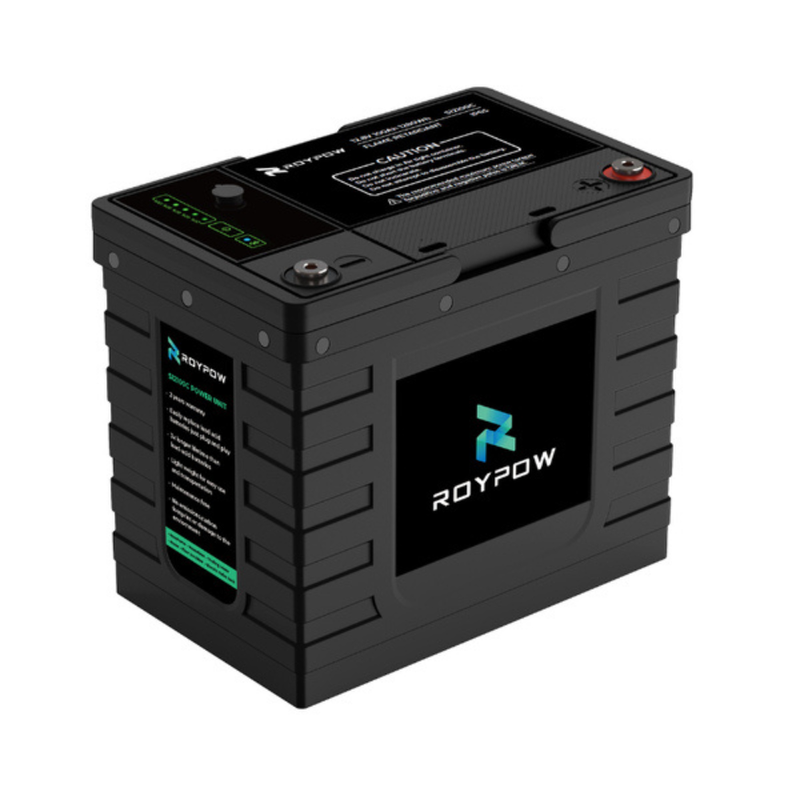

RoyPow | Battery LiFePO4 | 12.8V 100Ah 1280Wh | IP65

Technical characteristics:

Model: S12100C-A / SC12100C

Technology: LiFePO4

Rated capacity Ah: 100 Ah @ 0.5C, 25 °C

Configuration: 4S1P

Operating temperature

– Charging temperature °C: 0 ~ 55

– Discharge temperature °C: −20 ~ 55

Storage temperature

– Short term (up to 1 month) °C: −10 ~ 40

– Long term (up to 1 year) °C: 0 ~ 25

Rated voltage V: 12.8 V (3.2 V cell)

Maximum voltage V: 14.6 V (3.65 V cell)

Minimum voltage V: 10.0 V (2.5 V cell)

Standard energy capacity   kWh: 1.28 @ 0.5C, 25 °C

Weight kg: 11.5 ± 1

Maximum discharge current A: 150 A (30 s)               @5 s, 25 °C, SOC 50%, BOL

Maximum charging current A: 100 A               @5 s, 25 °C, SOC 50%, BOL

Continuous discharge current A: 50 A      @25 °C, SOC 50%, BOL

Continuous charging current A: 50 A         @25 °C, SOC 50%, BOL

Battery system SOC state – standard charging: Constant current: ≤0.5C

Constant voltage: 3.65 V

Termination (off): ≥0.02C    @25 °C

SOC status before shipment %: 30% ± 3%

Self-discharge %: ≤3% per month                @SOC 100%, 25°C, BOL

Insulation MΩ: ≥20 MΩ / 1000 VDC    @25 °C ±5 °C, RH 50 %

Cooling method: Natural (passive) convection

IP protection level: IP65

Lifespan (cycles): >3500 cycles

Remaining capacity at end of life (EOL) %: ≥70%

Cycle test conditions: @25°C, 0.5C charge, 1C discharge, DOD 70% (SOC 30-100%)

Warranty: 5 years
