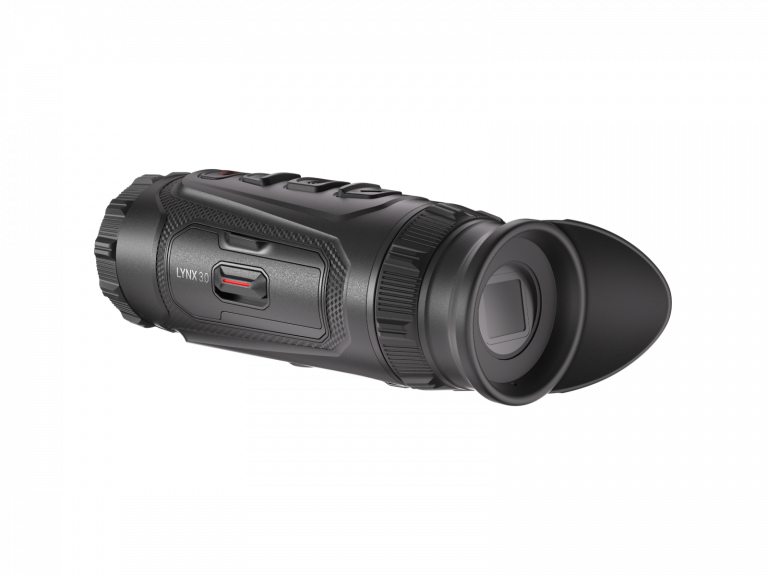

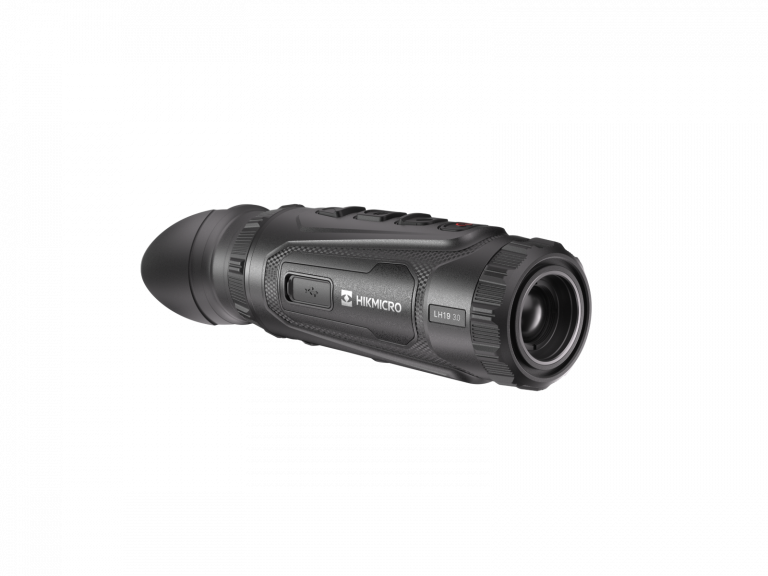

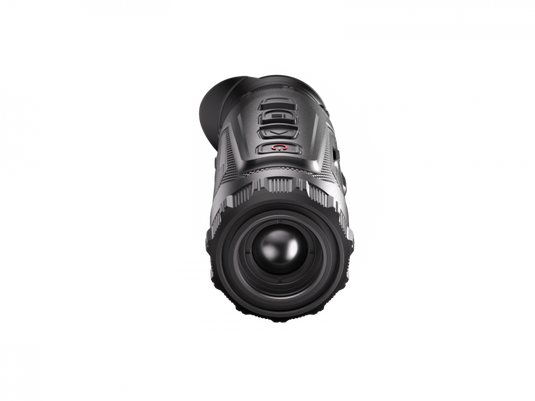

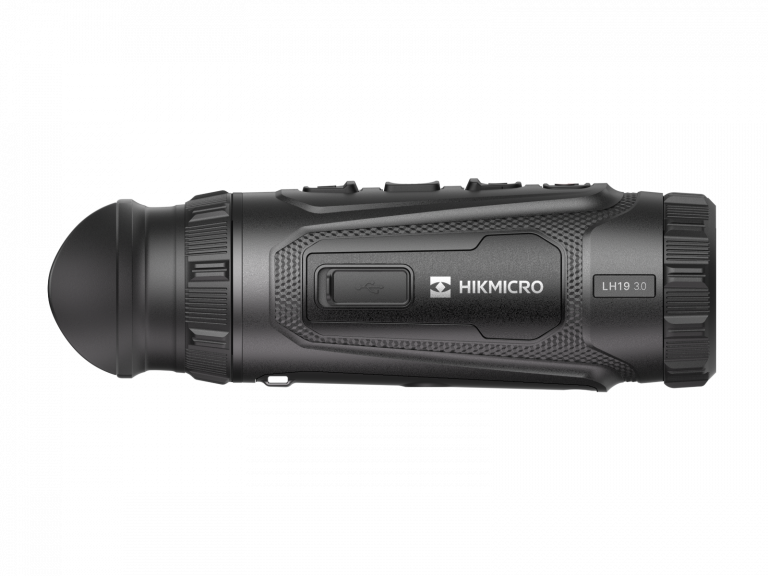

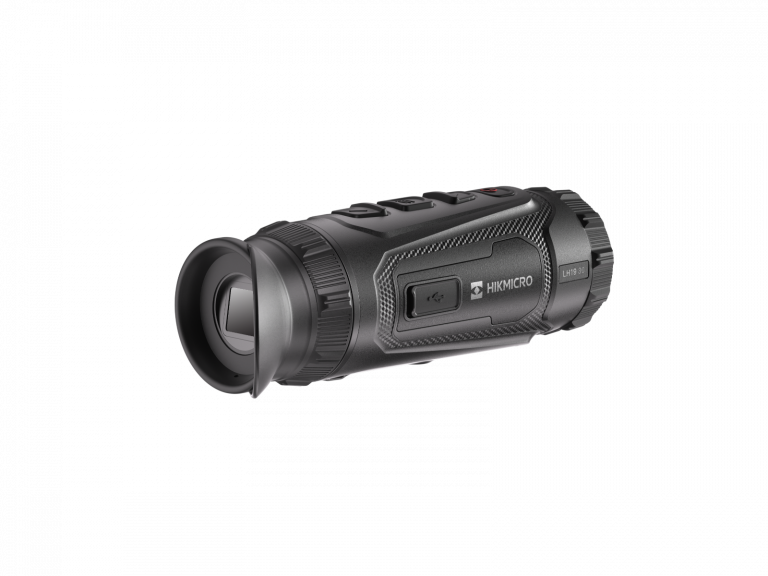

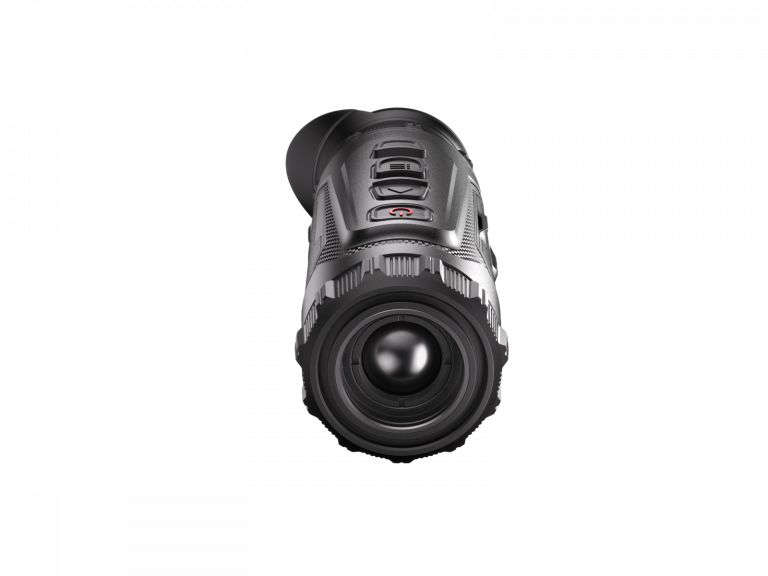

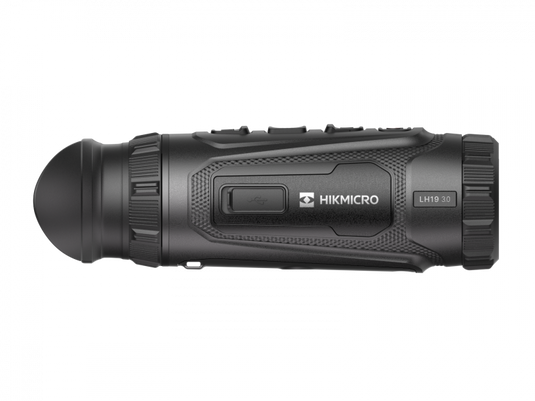

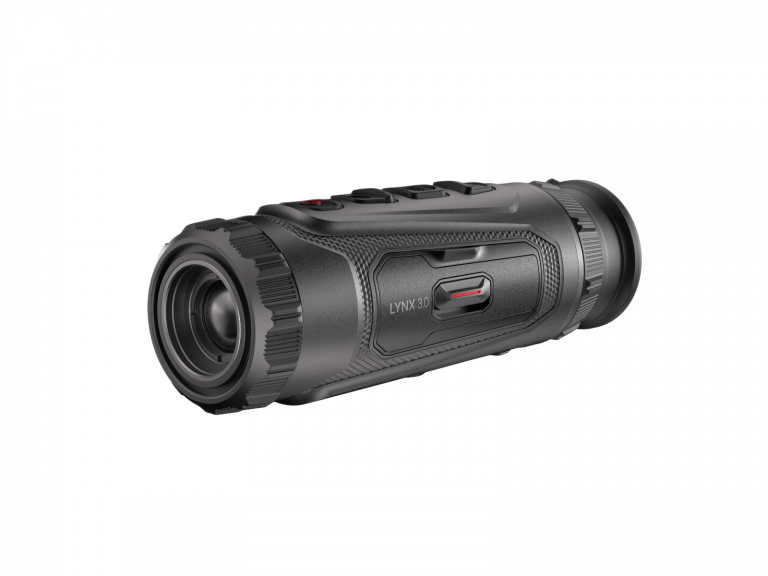

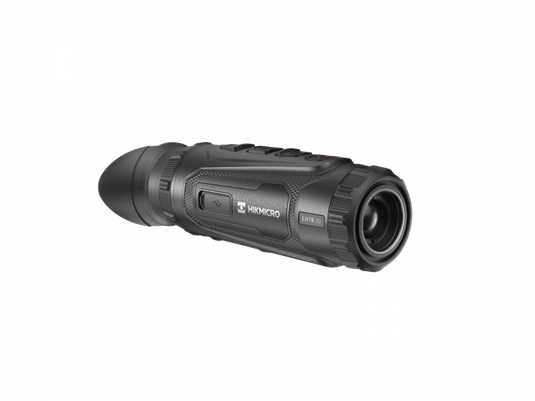

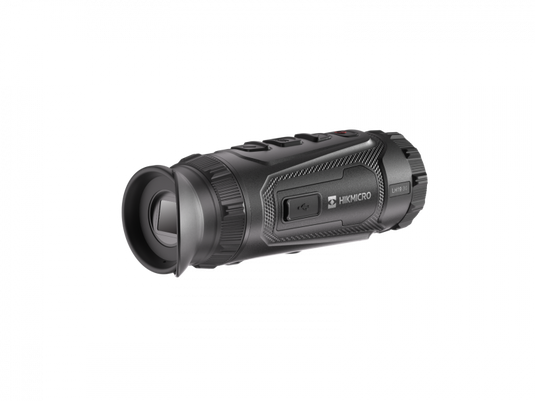

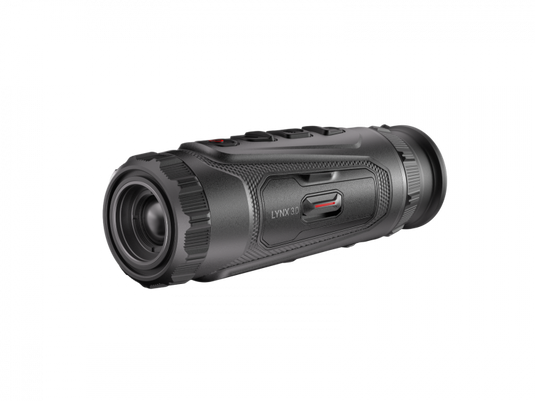

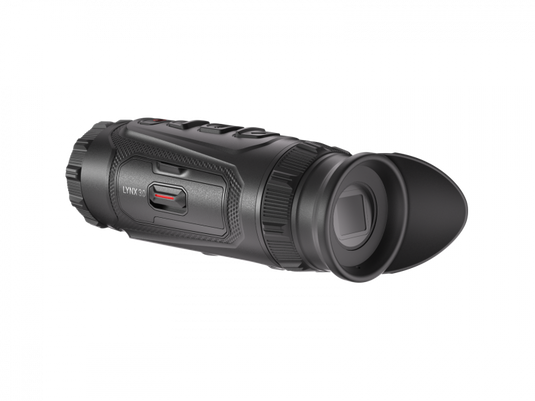

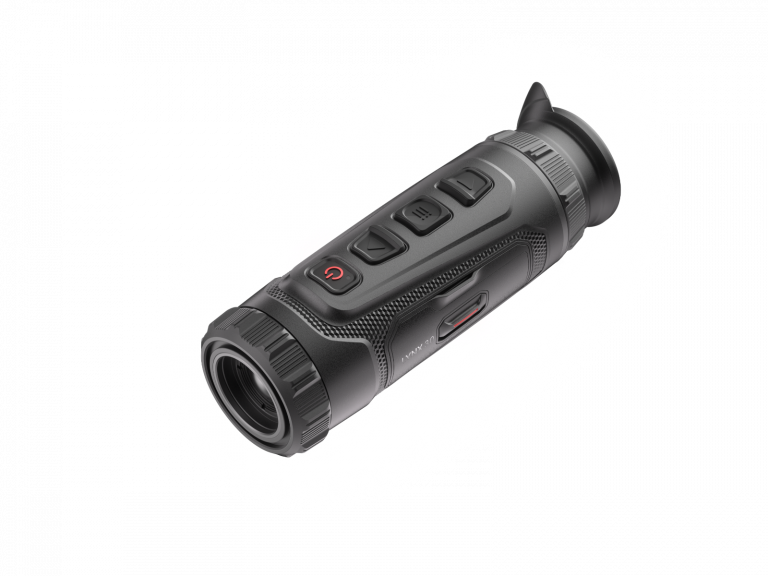

HIKMICRO | Lynx 3.0 19mm 384×288px | Thermal Monocular | LH19 | *Pre-Order

Available for pre-order. Stock due mid December.

The Lynx 3.0 , redefining entry-level thermal imagers.

The HIKMICRO Lynx 3.0 LH19 sets a new benchmark in portable thermal optics. Equipped with a 384x288 thermal detector and a 19mm F1.0 lens, it delivers 1.9x base magnification, a 13.8° field of view, and a 900-metre detection range, providing sharp detail and versatile coverage for professionals in the field.

Enhanced with AI-powered Image Pro 3.0 and Zoom Pro algorithms, the LH19 ensures superior contrast and detail recognition. Its HIKMICRO Shutterless Image System (HSIS) guarantees smooth, noise-free imaging , ideal for discreet and continuous observation.

Built with durability in mind, the LH19 weighs 331 grams and is powered by a replaceable 18650 battery, offering 4.5 hours’ runtime at -20°C. Compact, ergonomic, and performance-driven, it’s a premium choice for professionals demanding exceptional image quality in a lightweight body.

• Image SensorVOx Uncooled Focal Plane Arrays
• Max. Resolution384 × 288
• Frame Rate50 Hz
• Pixel Interval12 μm
• Response Waveband8 μm to 14 μm
• NETDLess than 15 mK (@25°C), F#=1.0
• Lens (Focal Length)19 mm, F1.0
• Focus ModeFocus Wheel
• Min. Focusing Distance3 m
• Magnification1.9 × - 15.2 × (8×)
• Field of View (H × V), Degrees / m @100 m13.8° × 8.4° / 24.2 m × 14.7 m
• Detection Range900 m
• Display1920 × 1080, 0.49 inch, AMOLED
• Contrast AdjustmentYes
• Brightness AdjustmentYes
• PalettesBlack Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil6 mm
• Eye Relief20 mm
• Diopter (Range)-5 D to +3 D
• Tone AdjustmentCold, Warm
• Zoom ProYes
• HSIS (HIKMICRO Shutterless Image System)Yes
• Image Pro 3.0Yes
• Sync ProYes
• Battery TypeReplaceable and rechargeable 18650 battery
• Protection LevelIP67
• Weight331 g with Battery

• 384×288 thermal detector with NETD < 15 mK
• 19mm F1.0 lens with 900m detection range
• AI-powered Image Pro 3.0 and Zoom Pro algorithms
• HIKMICRO Shutterless Image System (HSIS)
• 0.49” 1920×1080 AMOLED display
• Up to 4.5 hours’ operation at -20°C
• Lightweight, pocket-sized 331g design

• Main Unit: 3 Years

If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/

HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
